ModScan

Installing ModScan

Navigate to the WinTech Software Design page and look for Win32 Modbus Applications.

select the ModScan.zip Download link depending on your system.

note

You may notice the x64 version is for windows 7, it should work for all the versions after windows 7.

Once downloaded, extract all the contents to your desired location and run ModScanxx.exe

note

You may notice the following warnings after running ModScanxx.exe.

Registration Information.

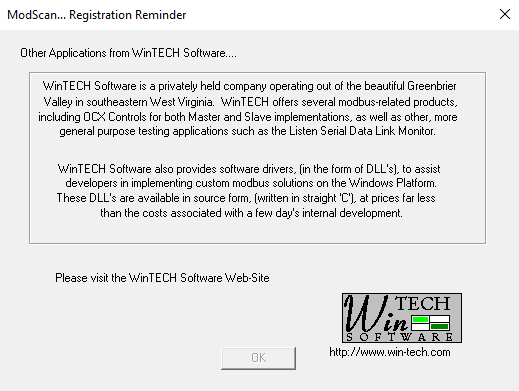

Registration Remainder.

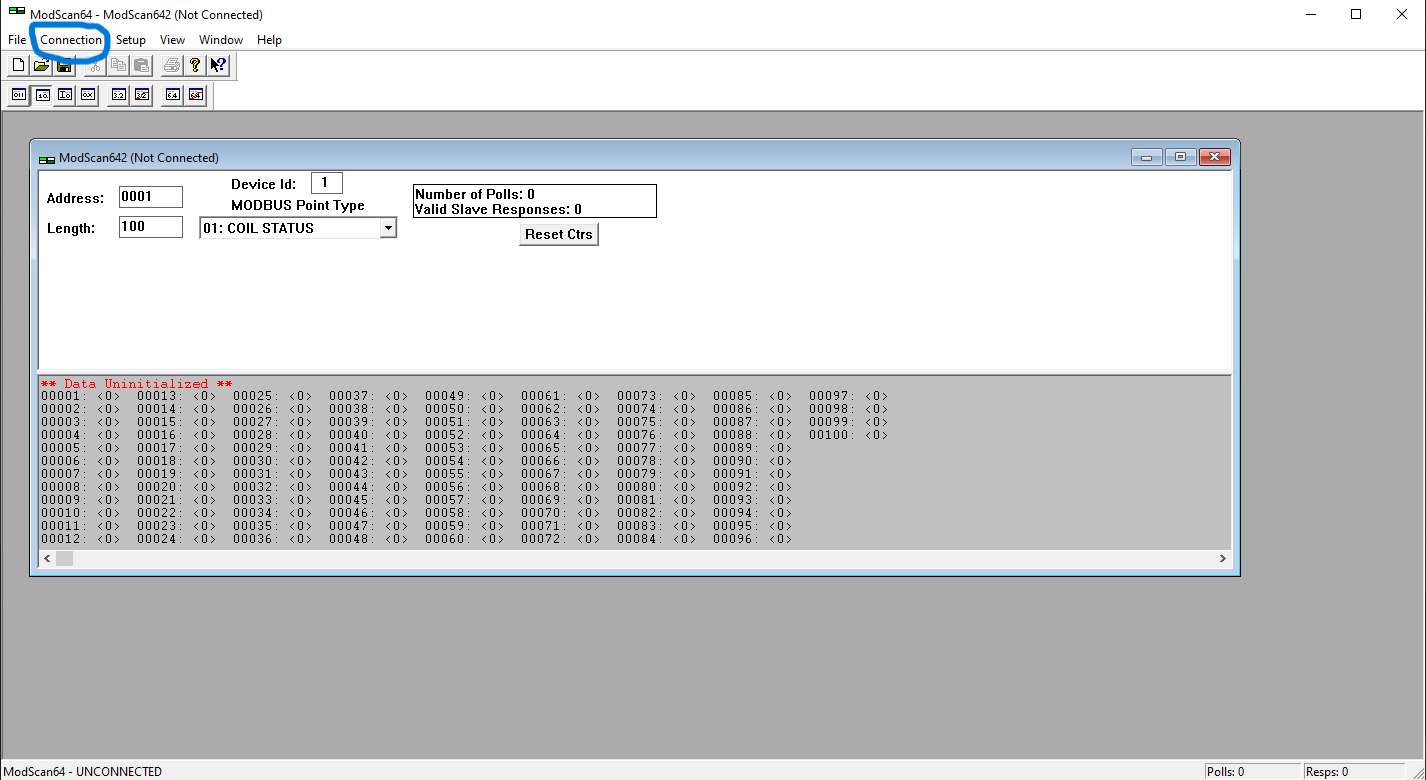

Check for connection on the top left corner.

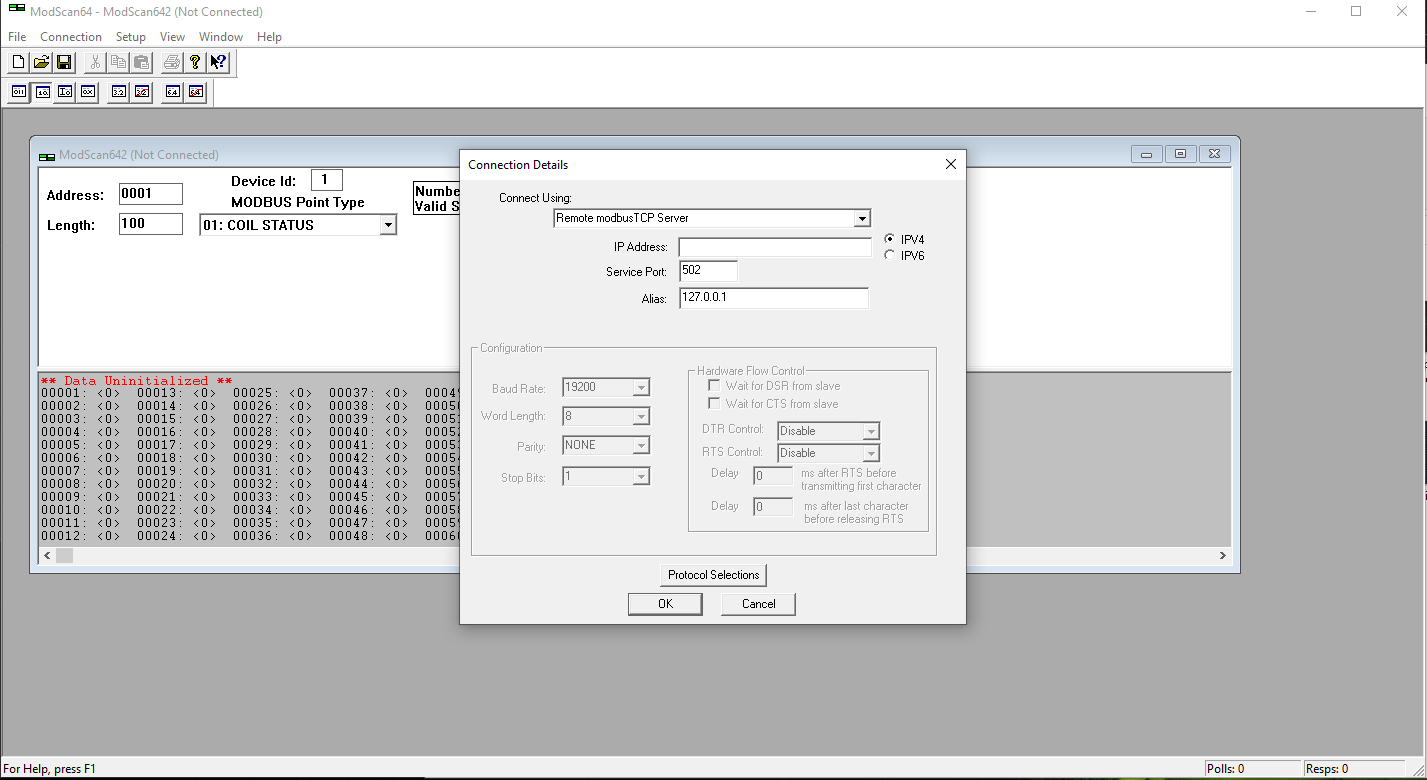

Enter the connection method, IP address, and select ok.

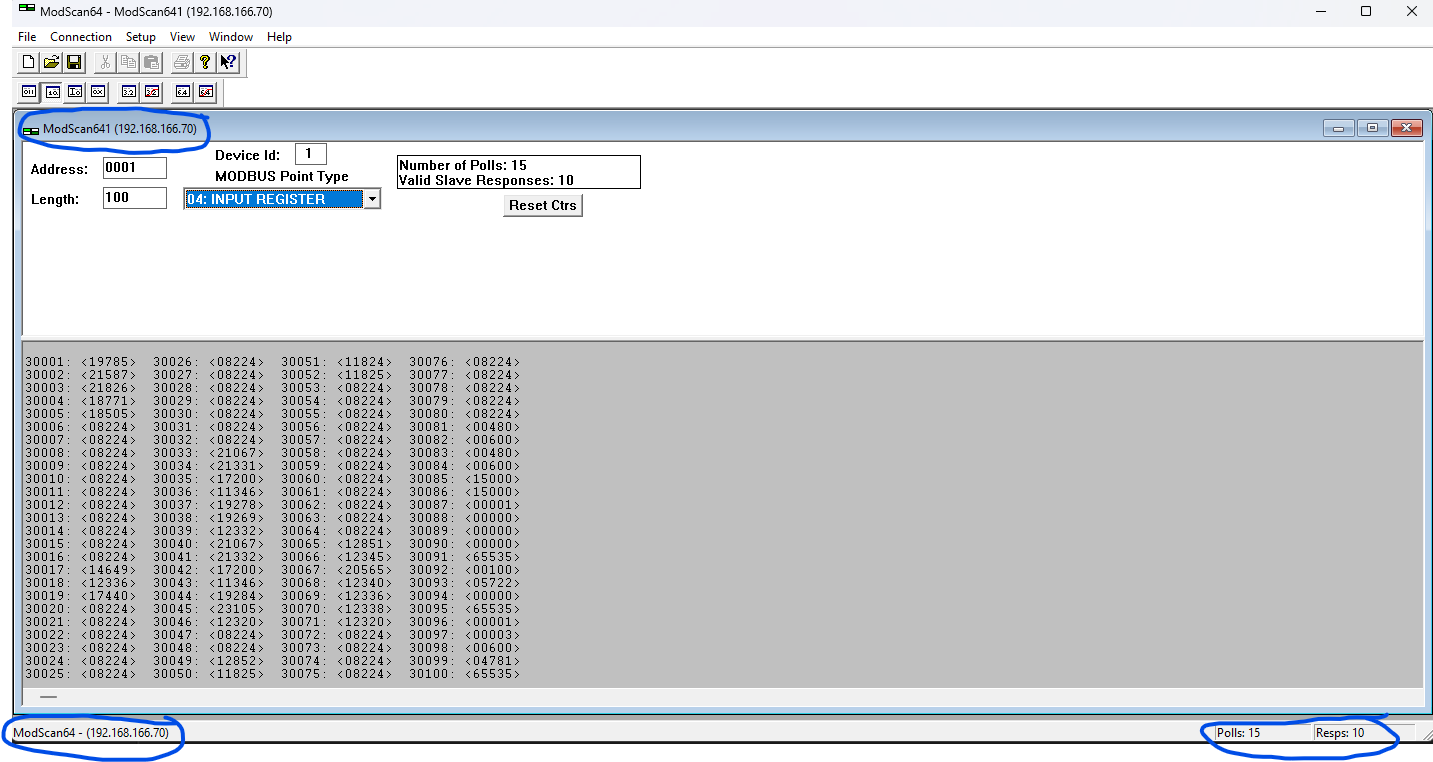

You should be able to check the connection status and browse for modbus registers.

Revision	Date	Name	Description
1.0.0	6/25/2024	Prem Kumar Reddy	Initial Implementation
